53" Vinyl Cutter Plotter Auto Contour Blue Color Cut Graphics
Advertise
This 53" Professional Vinyl Cutting Plotter with floor stand comes
with easy-to-use Design and SIGNMASTER software, which allows you
to cut professional customized designs and signs with your cutting
machines, giving you the ability to use your fonts, import custom
artwork and draw your own shapes!
Features & Details
- [CUTTING CAPACITY]- With maximum paper feed of 1350mm (53.1"),
maximum cutting width of 1260mm (49.6"), cutting precision of
+/-0.01mm (0.0004") and paper feed precision of 10m (393.7").
- [STRONG STABILITY]- With ARM motherboard and 16M high speed cache
memory. Double spring pinch-rollers, and roughened steel roller
ensure that the paper feed will not deviate by long distance.
- [DIGITAL CONTROL]- Cutting pressure with 20-500g adjustable,
cutting speed with 20-800mm per second adjustable. Backlight LCD
display for more intuitive operation.
- [HIGH COMPATIBILITY]- Available with COMPIM, USB and U-Disk
interface. DM/PL, HP/GL language. Works with your installed Fonts,
including Dingbat/Wingding Fonts. Import various file formats,
including SVG and PDF.
- [WIDELY USED]- Can be used in advertisement field, various
decoration, handcraft, supplementary for heat transfer, label &
sign making, etc.
Products Description:
User Manual is included in the attached USB flash disk.
1. High Efficiency: The maximum paper feed is 1350mm (53.1"), and the maximum cutting
width is 1260mm (49.6"). With cutting precision of +/-0.01mm
(0.0004"), and paper feed precision of 10m (393.7"). ARM
motherboard and stepper motors equipped, with 4M high speed cache
memory, and DM/PL, HP/GL language.

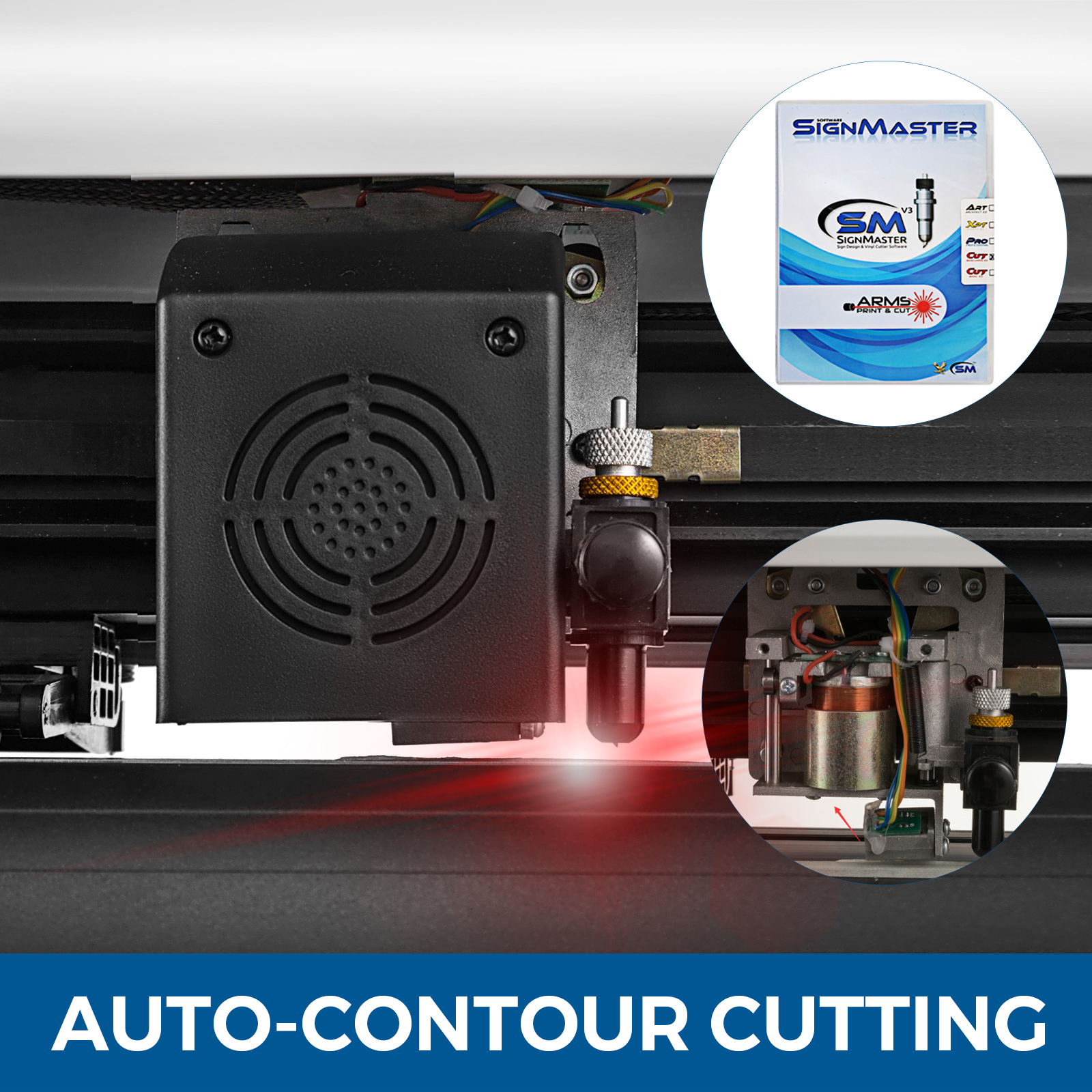

2. Auto-Contour Cutting: With optical eye, laser pointer and casting pressure carriage,
supporting automatic contour cutting. With Signmaster software
equipped, it can achieve more accurate and high-quality cutting.

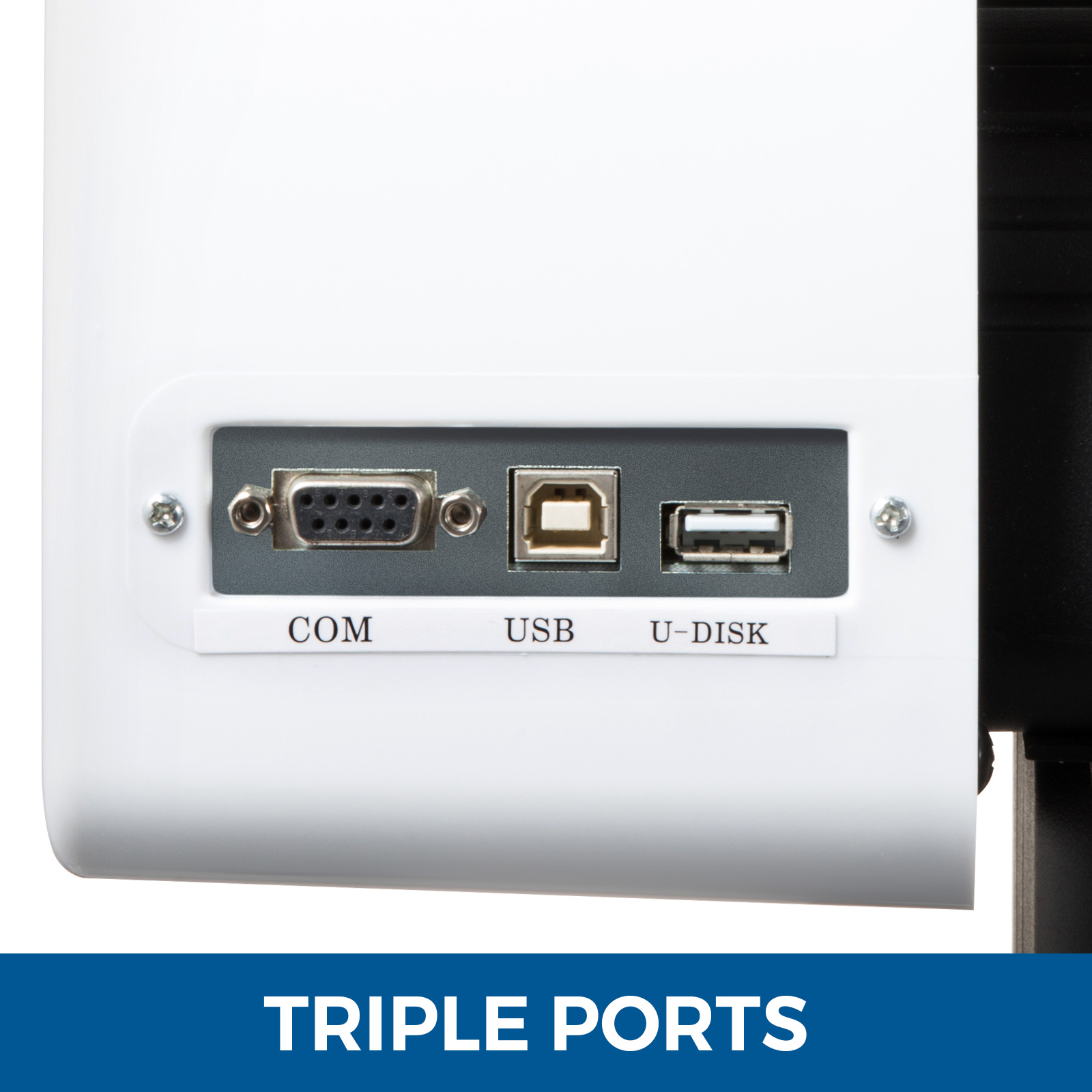

Triple Ports: COMPIM, USB and U-Disk available. Standard USB 2.0 interface
equipped. Flexible switch between USB and virtual serial ports.
Supports offline processing with USB disk.

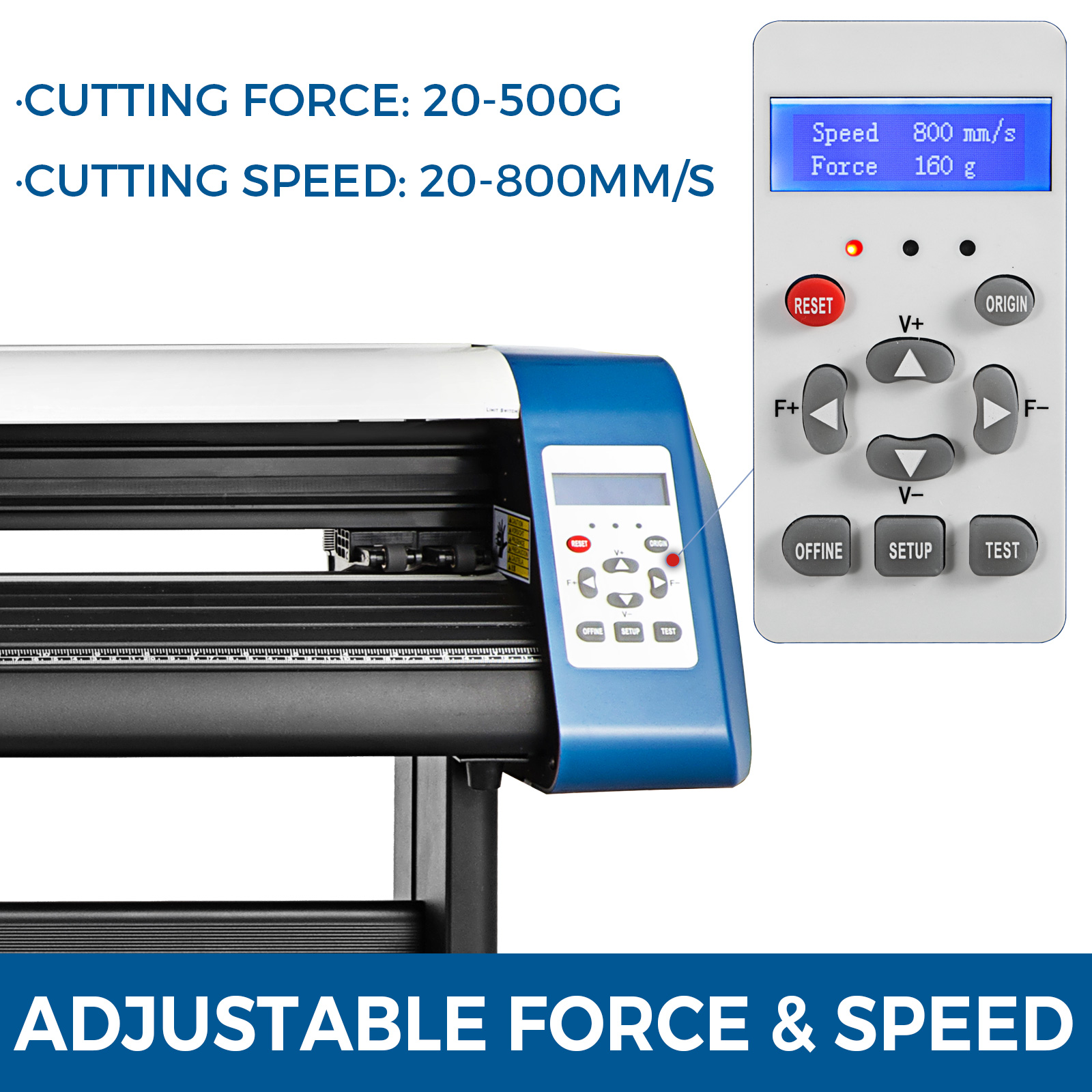

Adjustable Force & Speed: Digital control panel allows adjustment of cutting force and speed.
Cutting pressure with 20-500g adjustable, and cutting speed with
20-800mm/s adjustable. With backlight LCD display for directly
display of working process.
Sturdy Floor Stand: Structured with heavy duty sheet metal floor stand, featuring 2
rollers which can hold the paper. Also with a paper basket for
preventing the material from falling to the ground.
Well-Designed Details: Aluminum knurling stick and high precision pressing wheels, and
integrated pressure roller including 4 adjustable double spring
pinch-rollers ensure the anti-deviation of paper feed by long
distance. The handle on rollers makes one-time pressing possible.
With casting pressure carriage and scale line for intuitive and
accurate operation, LED strip lights for illuminating and caster
wheels for convenient movement.
NOT compatible with IOS system!- Cutting Capacity
- Strong Stability
- Digital Control
- High Compatibility
Specifications- Max Paper Feed: 53.1" (1350mm)
- Max Cutter Width: 49.6" (1260mm)
- Cutting Accuracy: ± 0.0004" (0.01mm)
- Temperature: 5-35℃
- Relative Humidity: 30%-50%
- Gross Dimensions: 65"x13"x16.5" (165x33x42cm)
Package Content- 1 x 53" Cutter Plotter Machine Set
- 1 x Signmaster Software
- 1 x Floor Stand
- 2 x Cables (USB & Serial)
- 1 x Power Cord
- 1 x USB Flash Disk
- 1 x User Manual
Features & Details- [CUTTING CAPACITY]- With maximum paper feed of 1350mm (53.1"),
maximum cutting width of 1260mm (49.6"), cutting precision of
+/-0.01mm (0.0004") and paper feed precision of 10m (393.7").
- [STRONG STABILITY]- With ARM motherboard and 4M high speed cache
memory. Double spring pinch-rollers, and roughened steel roller
ensure that the paper feed will not deviate by long distance.
- [DIGITAL CONTROL]- Cutting pressure with 20-500g adjustable,
cutting speed with 20-800mm per second adjustable. Backlight LCD
display for more intuitive operation.
- [HIGH COMPATIBILITY]- Available with COMPIM, USB and U-Disk
interface. DM/PL, HP/GL language. Works with your installed Fonts,
including Dingbat/Wingding Fonts. Import various file formats,
including SVG and PDF.
- [WIDELY USED]- Ceral length more than 108'', perimeter more than 165'' ) need 12
days delay.
